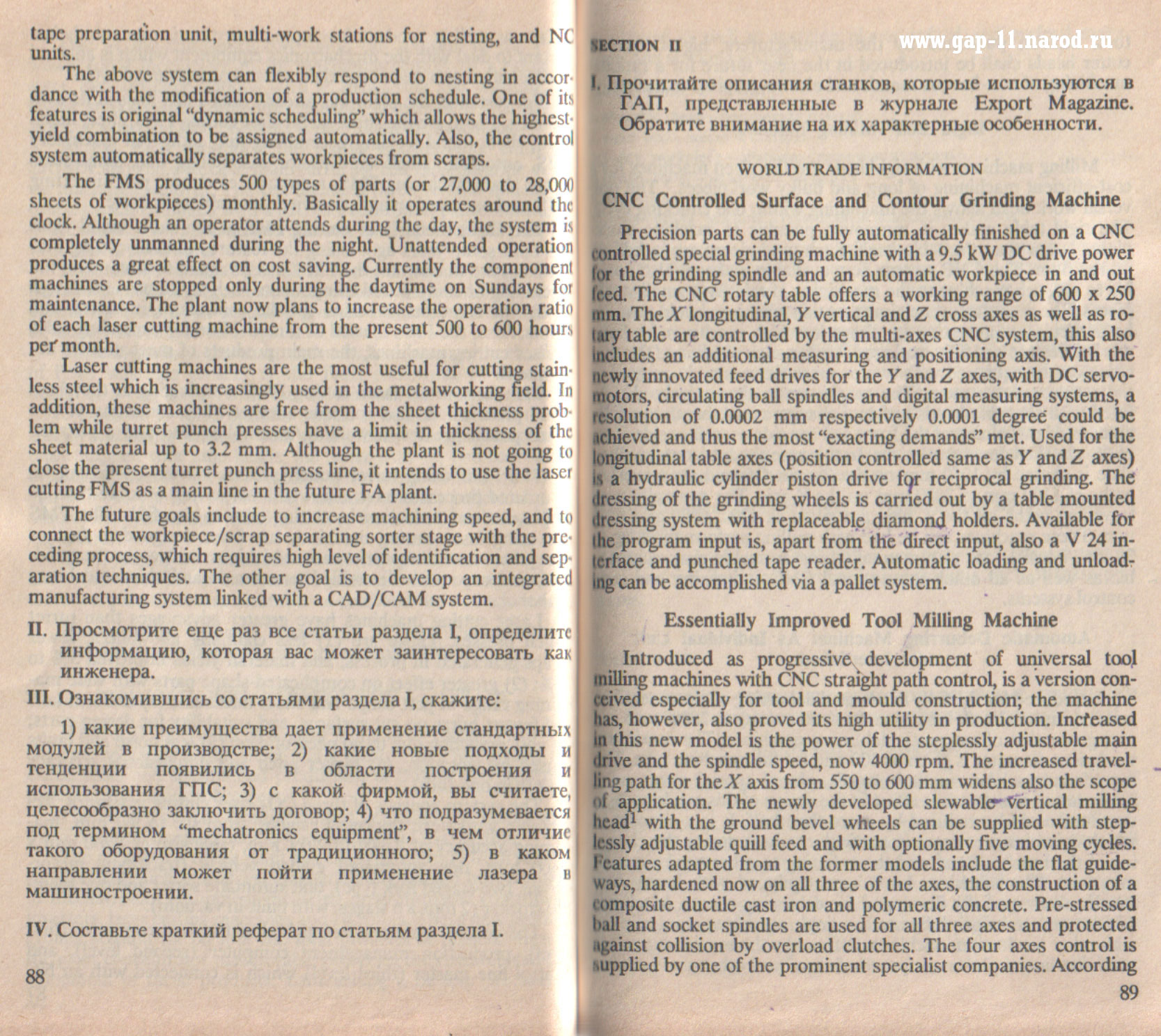

   Отсканированные страницы с текстом из пособия "ГАП" в формате GIF ¬
Страница
88
Страница
89
Пособие по обучению чтению на английском языке, М.Я. Баракова (Страница 88 и 89)

   Данный сайт, на котором Вы сейчас находитесь, называется "Пособие по обучению чтению на английском языке, М.Я. Баракова, Г.А. Мкртчян, Н.И. Наумова, 1990 г.".    Если Вы искали именно, это тогда вам сильно повезло. Здесь Вы найдете все необходимые тексты, находящиеся в учебнике и даже готовый перевод, который нужно просто взять и распечатать.

   Выше как Вы уже видели, находятся отсканированное изображение некоторых страниц в формате GIF взятые из Пособия по обучению чтению на английском языке название, которого "Гибкие Автоматизированные Производства".    Формат GIF это простая картинка, которую можно распечатать или просмотреть как в обычном, так и в увеличенном виде.

   Если посмотреть ниже там Вы сможете найти тот самый текст, который видели выше, но уже не в GIF, а в текстовом формате. Это сделано специально для тех, кому лень распознать текст, через какие либо программы для дальнейшего использования.
    И еще одна фишка сайта заключается в том, что Вам не придется переводить тексты, это уже сделали за вас.
Вам необходимо, что-либо найти? Воспользуйтесь поиском. Может он Вам чем-то поможет. Удачи!!!
   Распознанный текст в формате DOC с отсканированных страниц расположенных выше ¬
Страница
88
Страница
89
tape preparation unit, multi-work stations for nesting, and NC units.
    The above system can flexibly respond to nesting in асvordance with the modification of a production schedule. One of it' features is original "dynamic scheduling" which allows the highest yield combination to be assigned automatically. Also, the control system automatically separates workpieces from scraps.
     The FMS produces 500 types of parts (or 27,000 to 28,01» sheets of workpieces) monthly. Basically it operates around the clock. Although an operator attends during the day, the system completely unmanned during the night. Unattended operation produces a great effect on cost saving. Currently the component machines are stopped only during the daytime on Sundays t maintenance. The plant now plans to increase the operation ratio of each laser cutting machine from the present 500 to 600 hours per month.
     Laser cutting machines arc the most useful for cutting stainless steel which is increasingly used in the metalworking field, addition, these machines arc free from the sheet thickness problem while turret punch presses have a limit in thickness of the sheet material up to 3.2 mm. Although the plant is not going to close the present turret punch press line, it intends to use the laser cutting FMS as a main line in the future FA plant.
     The future goals include to increase machining speed, and to connect the workpiece/scrap separating sorter stage with the preceding process, which requires high level of identification and separation techniques. The other goal is to develop an integrated manufacturing system linked with a CAD/CAM system.

II. Просмотрите еще раз все статьи раздела I, определите    информацию, которая вас может заинтересовать как    инженера.
III. Ознакомившись со статьями раздела I, скажите:
    1) какие преимущества дает применение стандартных модулей в производстве; 2) какие новые подходы и тенденции появились в области построения и использования ГПС; 3) с какой фирмой, вы считаете целесообразно заключить договор; 4) что подразумевается под термином "mechatronics equipment", в чем отличие такого оборудования от традиционного; 5) в каком направлении может пойти применение лазера в машиностроении.

IV
. Составьте краткий реферат по статьям раздела I.
SECTION II

I. Промигайте описания станков, которые используются в ГЛП,    представленные в журнале Export Magazine. Обратите    внимание на их характерные особенности.

                       WORLD TRADE INFORMATION

    CNC Controlled Surface and Contour Grinding Machine
   Precision parts can be fully automatically finished on a CNC controlled special grinding machine with a 9.5 kW DC drive power lor the grinding spindle and an automatic workpiece in and out feed. The CNC rotary table offers a working range of 600 x 250 mm. The X longitudinal, Y vertical and Z cross axes as well as rotary table are controlled by the multi-axes CNC system, this also Includes an additional measuring and positioning axis. With the newly innovated feed drives for the У and Z axes, with DC servomotors, circulating ball spindles and digital measuring systems, a resolution of 0.0002 mm respectively 0.0001 degree could be achieved and thus the most "exacting demands" met. Used for the longitudinal table axes (position controlled same as У and Z axes) is a hydraulic cylinder piston drive for reciprocal grinding. The dressing of the grinding wheels is carried out by a table mounted dressing system with replaceable diamond holders. Available for the program input is, apart from the direct input, also a V 24 interface and punched tape reader. Automatic loading and unloading be accomplished via a pallet system.

           Essentially Improved Tool Milling Machine
    Introduced as progressive development of universal tool milling machines with CNC straight path control, is a version conceived especially for tool and mould construction; the machine has, however, also proved its high utility in production. Increased in this new model is the power of the steplessly adjustable main drive and the spindle speed, now 4000 rpm. The increased traveling path for the X axis from 550 to 600 mm widens also the scope of application. The newly developed slewable vertical milling head1 with the ground bevel wheels can be supplied with step-lessly adjustable quill feed and with optionally five moving cycles. Features adapted from the former models include the flat guide-ways, hardened now on all three of the axes, the construction of a composite ductile cast iron and polymeric concrete. Pre-stressed ball and socket spindles are used for all three axes and protected against collision by overload clutches. The four axes control is supplied by one of the prominent specialist companies. According
